Netshell is a Rack & Enclosure producer and worldwide supplier of high-quality solutions for data centre infrastructure.

Netshell products stand out for their innovativeness and flexibility. Customers can always be assured that they will get the very latest data centre technology: modular solutions
that respond to evolving, customer-specific business requirements.

OUR PROMISE

Affordable & superior quality

OUR CORE VALUES

The cabinet platform on which your enterprise is built is just as critical as the equipment it stores. Utilizing a properly configured cabinet that is designed to fit your equipment and work with your data centre’s cooling system is crucial. As the leader in innovative storage solutions, Netshell Cabinet and Enclosure Systems provide configurable solutions for storing multiple servers, switches and various pieces of computer equipment and offer remote user access monitoring, power distribution, enhanced thermal management and advanced cable management options to meet your growing enterprise needs.

  • Innovation and flexibility handles

We develop,produce and customised to ensures customers are always receiving the latest data centre technology

  • From standard to customer specific

With Netshell, you are always provided with a data centre solution that will suit you, whether it’s a standard solution or a customer specific product.

  • Modularity and integration

Modularity and complete integration are the foundations for a flexible, efficient and future-proof data centre.

  • Global presence, local excellence

Netshell aims for consistent quality and availability of its products worldwide, complemented by local service.

Netshell

Solutions for your data centre or server room

Powered by experts!

The emphasis of this catalogue is on our standard products. If you cannot find the products you are looking for and would like to know more about mass customisation or the customised products we can supply,
we will be happy to help you. You can find the contact details on the back side of this catalogue

Powered by experts

Our Offering

Cable Runways
Floor Mount Racks
Cable Runways
Customized Racks
KVM Consoles
Rack Security
Side Brush Modules
Open Rack
Power Cords

Data Center Racks
Outdoor Cabinets
Power Distribution Unit
Racks
Lab Racks
Cable Management Solutions
Server Racks & Cabinets
Computer Server Racks

Cable Management Rack
Grounding And Bonding
Rack Mount Lcd Console
Self Cooled Server Racks
Server Rack Blanking Panels
Rack Monitoring
Automatic Transfer Switch
Server Rack Blanking Panels

STANDARD PRODUCT CATALOGUE

WHAT WILL YOU FIND IN THIS STANDARD PRODUCT CATALOGUE?

The core values of modularity, flexibility and energy efficiency are reflected throughout our extensive standard product portfolio. This means you always benefit from the latest technology and you will see it integrated into our standard solutions almost instantly.

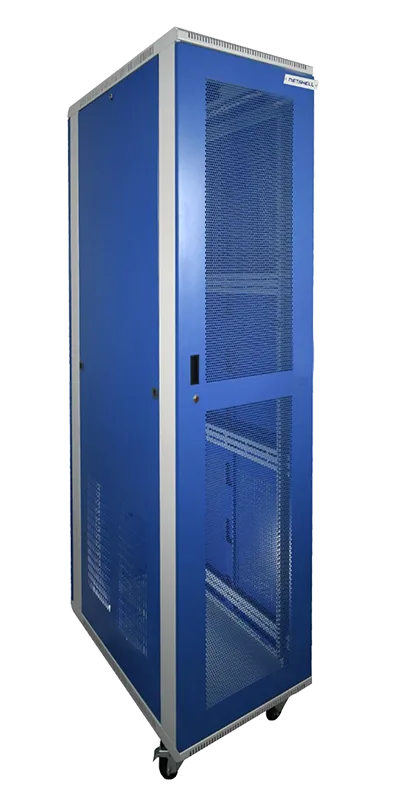

SERVER RACK

FEATURES

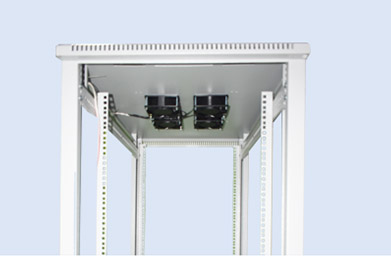

Rugged construction

Rugged construction:

The extreme modularity and flexibility of Netshell cabinets enable to meet challenging rugged environments and harsh conditions found in outdoor or factory settings.

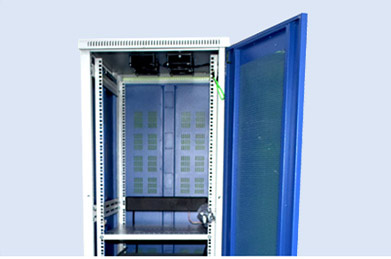

Convenient installation and maintenance

Convenient installation & maintenance:

Detachable side panels provide ease of access and convenient post installation maintenance.

Easy Installation

Easy installation:

Netshell Feature-rich rack enclosure optimized for easy installation with managing cables and integrating power distribution unit.

Excellent ventilation

Excellent ventilation:

Netshell networking cabinets have integral ventilation cut-outs in the doors and side covers promoting air circulation throughout.

Convenient locking mechanism

Convenient locking mechanism:

Netshell offers complete range of locking system for rack security, customer can select the locking system based on the management & site requirement.

Convenient disassembly

Convenient disassembly:

Netshell have removable front and rear doors and removable side panels so it can be disassemble and transport easily.

Convenient cable entry

Convenient cable entry:

Cable entries are located at the top and bottom of the cabinet with professional plastic stringing holes for cable winding, equipment adjustment and maintenance.

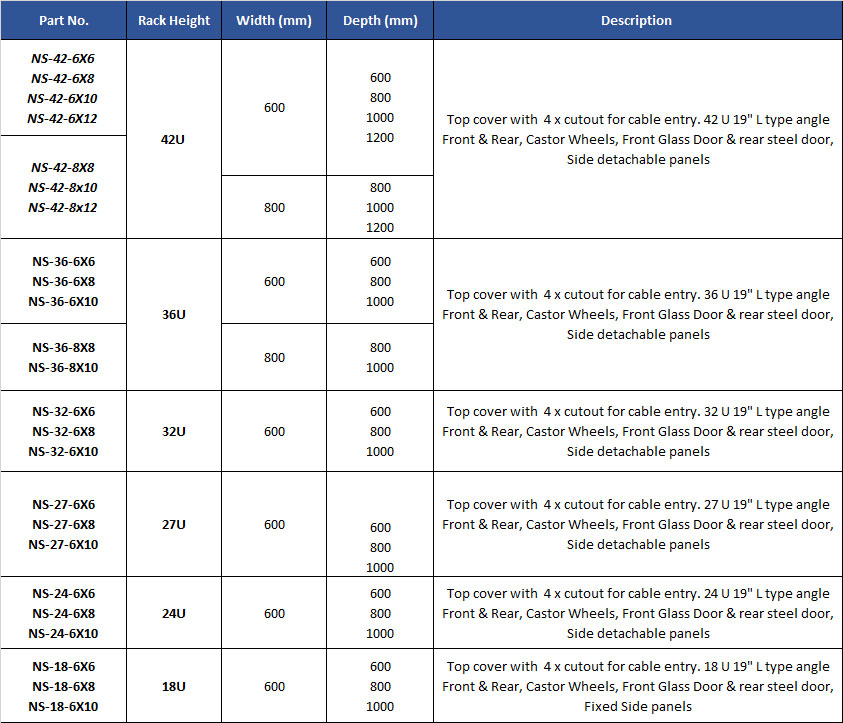

Server Racks

Part No.

Rack Height

Width (mm)

Depth (mm)

Description

NS-42-6X6

NS-42-6X8

NS-42-6X10

42U

600

600

600

800

1000

Top cover with  4 x cutout for cable entry. 42 U 19″ L type angle Front & Rear, Castor Wheels, Front Glass Door & rear steel door, Side detachable panels

NS-42-8X8

NS-42-8×10

800

800

1000

NS-36-6X6

NS-36-6X8

NS-36-6X10

36U

600

600

800

1000

Top cover with  4 x cutout for cable entry. 36 U 19″ L type angle Front & Rear, Castor Wheels, Front Glass Door & rear steel door, Side detachable panels

NS-36-8X8

NS-36-8X10

800

800

1000

NS-32-6X6

NS-32-6X8

NS-32-6X10

32U

600

600

800

1000

Top cover with  4 x cutout for cable entry. 32 U 19″ L type angle Front & Rear, Castor Wheels, Front Glass Door & rear steel door, Side detachable panels

NS-27-6X6

NS-27-6X8

NS-27-6X10

27U

600

600

800

1000

Top cover with  4 x cutout for cable entry. 27 U 19″ L type angle Front & Rear, Castor Wheels, Front Glass Door & rear steel door, Side detachable panels

NS-24-6X6

NS-24-6X8

NS-24-6X10

24U

600

600

800

1000

Top cover with  4 x cutout for cable entry. 24 U 19″ L type angle Front & Rear, Castor Wheels, Front Glass Door & rear steel door, Side detachable panels

NS-18-6X6

NS-18-6X8

NS-18-6X10

18U

600

600

800

1000

Top cover with  4 x cutout for cable entry. 18 U 19″ L type angle Front & Rear, Castor Wheels, Front Glass Door & rear steel door, Fixed Side panels

Door Options

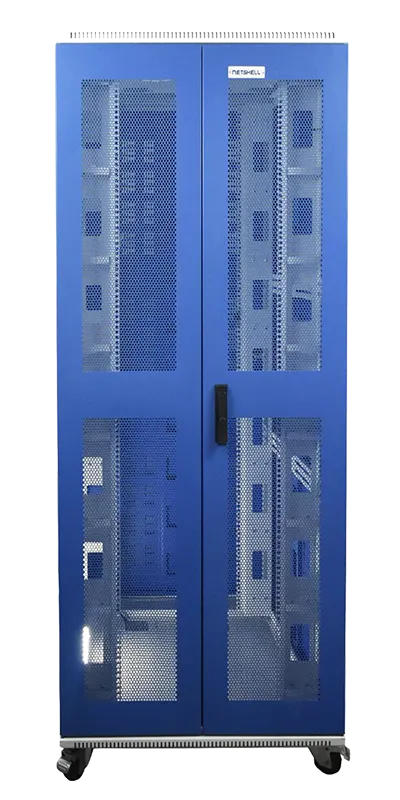

Perforated door

Perforated door

Double swing steel door

Double swing steel door

Steel casement door

Steel casement door

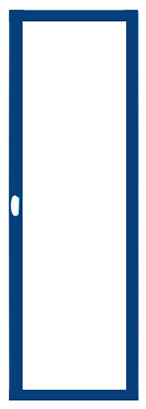

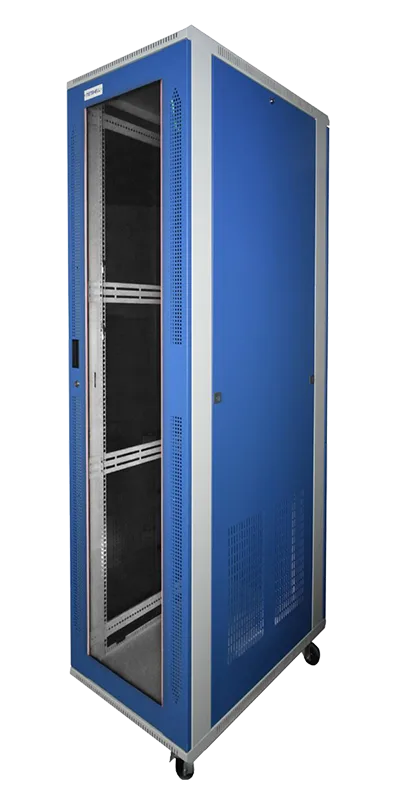

Glass door

Glass door

NETWORK RACK

FEATURES

Rugged construction

Rugged construction:

The extreme modularity and flexibility of Netshell cabinets enable to meet challenging rugged environments and harsh conditions found in outdoor or factory settings.

Convenient installation and maintenance

Convenient installation & maintenance:

Detachable side panels provide ease of access and convenient post installation maintenance.

Easy Installation

Easy installation:

Netshell Feature-rich rack enclosure optimized for easy installation with managing cables and integrating power distribution unit.

Excellent ventilation

Excellent ventilation:

Netshell networking cabinets have integral ventilation cut-outs in the doors and side covers promoting air circulation throughout.

Convenient disassembly

Convenient locking mechanism:

Netshell have removable front and rear doors and removable side panels so it can be disassemble and transport easily.

Convenient cable entry

Convenient disassembly:

Cable entries are located at the top and bottom of the cabinet with professional plastic stringing holes for cable winding, equipment adjustment and maintenance.

Server Racks

Part No.

Rack Height

Width (mm)

Depth (mm)

Description

NS-42-6X6

NS-42-6X8

NS-42-6X10

42U

600

600

600

800

1000

Top cover with  4 x cutout for cable entry. 42 U 19″ L type angle Front & Rear, Castor Wheels, Front Glass Door & rear steel door, Side detachable panels

NS-42-8X8

NS-42-8×10

800

800

1000

NS-36-6X6

NS-36-6X8

NS-36-6X10

36U

600

600

800

1000

Top cover with  4 x cutout for cable entry. 36 U 19″ L type angle Front & Rear, Castor Wheels, Front Glass Door & rear steel door, Side detachable panels

NS-36-8X8

NS-36-8X10

800

800

1000

NS-32-6X6

NS-32-6X8

NS-32-6X10

32U

600

600

800

1000

Top cover with  4 x cutout for cable entry. 32 U 19″ L type angle Front & Rear, Castor Wheels, Front Glass Door & rear steel door, Side detachable panels

NS-27-6X6

NS-27-6X8

NS-27-6X10

27U

600

600

800

1000

Top cover with  4 x cutout for cable entry. 27 U 19″ L type angle Front & Rear, Castor Wheels, Front Glass Door & rear steel door, Side detachable panels

NS-24-6X6

NS-24-6X8

NS-24-6X10

24U

600

600

800

1000

Top cover with  4 x cutout for cable entry. 24 U 19″ L type angle Front & Rear, Castor Wheels, Front Glass Door & rear steel door, Side detachable panels

NS-18-6X6

NS-18-6X8

NS-18-6X10

18U

600

600

800

1000

Top cover with  4 x cutout for cable entry. 18 U 19″ L type angle Front & Rear, Castor Wheels, Front Glass Door & rear steel door, Fixed Side panels

Door Options
Perforated door

Perforated door

Double swing steel door

Double swing steel door

Glass door

Glass door

WALL MOUNT RACK

FEATURES

wall mount rack

Wall Mount Rack

Rugged construction

Rugged construction:

The extreme modularity and flexibility of Netshell cabinets enable to meet challenging rugged environments and harsh conditions found in outdoor or factory settings.

Good visibility

Good visibility:

The tempered glass front door provides good visibility for observation of operating equipment.

Convenient disassembly

Convenient disassembly:

Easily removable front door for access………………………………………………..

Convenient cable entry

Convenient cable entry:

Cable entry access options from top of cabinet…………………………………………..

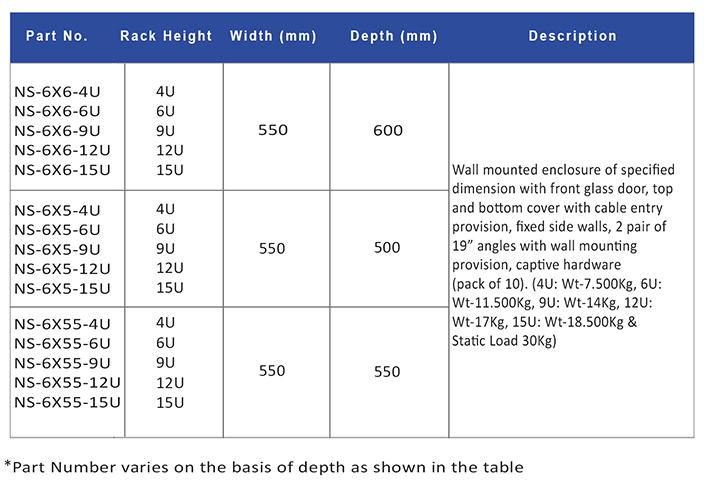

wall mount rack-spec

Door OptionsGlass door

Glass door

OUTDOOR RACK

FEATURES

outdoor rack

outdoor rack

Technical Specification

Description:

6U Outdoor Rack
Type : Pole Mount / Wall Mount
Size of Rack : 6U – 550mm W x 500 mm D / 400 mm D
Size of Canopy : 570 mm X 425 mm
Material : CRCA SHEET 0.9 mm / 1.2mm
Surface Protection :
Finish : Powder Coated – RAL 7032 / 7035
Front Door : Full Steel Door mounted with Rubber Gasket with Lock and key .
Side & Rear Panel : Welded ( Fully Closed)
19” Rails: 2 Pairs of 19” equipment mounting rails front & back adjustable.
Cable entry glands will be provided at bottom of the rack
If required : Fan exhaust shall be provided at bottom of the Rack else there
will be provision in side panels

Weather Protection: IP 55 to 65 as per requirement.
Optional/Addition accessories :
1. Cooling Fan 4” 90CFM , 230 VAC with Dust filter
2. PDU : 6 Socket x 5 Amp with Indicator rocker switch and main lead
3. Cable Manager – 19” 1U with PVC loops
4. Mounting Hardware : Pack of 10 pcs of M6 Cage nut with washer head screws
5. Wall Mount / Pole Mount Bracket

outdoor rack

VERTICAL & HORIZONTAL PDU

FEATURES

Vertical & Horizontal PDU

Part Name

Model Name

NS-HPDU-5x6S

Horizontal PDU 6AMP x 6 Sockets with switch with indicator

NS-HPDU-15x6S

Horizontal PDU 6/15AMP x 6 Sockets with switch with indicator

NS-VPDU-5x10S

Vertical PDU 10 Sockets 6 AMP with indicator switch

NS-VPDU-15x10S

Vertical PDU 10 Sockets 6/15 AMP with indicator switch

NS-VPDU-15x10M

Vertical PDU 10 Sockets 6/15 AMP with MCB

NS-VPDU-15x12S

Vertical PDU 12 Sockets 6/15 AMP with indicator switch

NS-VPDU-15x12M

Vertical PDU 12 Sockets 6/15 AMP with MCB

Power Receptacle/Outlet Table: Receptacles/Outlets

ACCESSORIES

FEATURES

Netshell Accessories

Services

When it’s about more than just the products

Installation Service

Netshell has extensive capabilities for pre-assembly. Accessories can for instance be fitted in our racks in advance, enabling you to save on the installation costs. Netshell can also install its integrated solutions for you on site. We are a manufacturer with an extensive network of service partners who can provide you with support during the purchasing process.

Technical Support

Netshell engineers are highly qualified data centre professionals. They will be happy to brainstorm with you to find the best conceivable solution.

Initial Use & Training

Support from Netshell doesn’t end with the delivery. Together with our partners, we facilitate commissioning and training

Logistical Services

Netshell can also offer you a range of logistical services such as worldwide transport and various stock control options.

Customer Service

Any questions?
You can call us or send us an e-mail. We will be happy to help you! You can find the contact details on the back side of this catalogue.

Online

Netshell has extensive capabilities for pre-assembly. Accessories can for instance be fitted in our racks in advance, enabling you to save on the installation costs. Netshell can also install its integrated solutions for you on site. We are a manufacturer with an extensive network of service partners who can provide you with support during the purchasing process.
